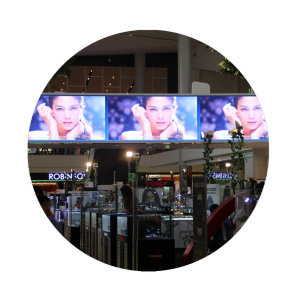

Indoor LED for Advertising
Indoor LED for Advertising
Indoor LED for Advertising

Parameter Value Unit
Application Indoor Commercial Advertising
Pixel pitch 6.25 mm
Brightness 1800 nits
Panel dimensions(W×H×D) 750×750×85 mm
Panel materail Steel
Weight 16 kg/panel
Weight 29 kg/m²
Pixel configuration 3-in-1 SMD
Pixel matrix per panel 120×120 pixels
Pixel density 25600 pixels/sq.m.
Refresh rate ≥1920 Hz
Gray scale per color 65536 level
Colors 549 Billion
Viewing angle(H/V) 120/120 deg.
IP rating(Front/Rear) IP40/IP21
Power consumption(max/avg) 480/160 W/sq.m.
Input voltage(AC) 110~240 V
Operating temperature -10 ~ +40 °C
Operating humidity 10%~90%
Source compatibility(with video processor) AV, S-Video, VGA, DVI, HDMI, SDI, DP
  • Indoor LED for advertising blended with modern technology of 3-in-1 SMD configuration and high level of brightness attracts a lot more visitors.
  • Picture quality is clearer because of 6.25 mm pixel pitch.
  • Compatibility with video processors.
  • Low power consumption saving bills.
