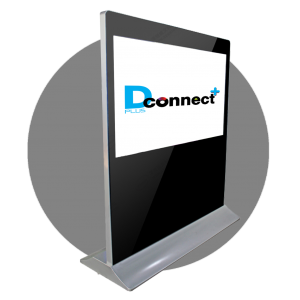

Horizontal Touch Screen Kiosk B
Horizontal Touch Screen Kiosk B
Horizontal Touch Screen Kiosk B

Size (inch) Display Area (mm) Resolution Brightness Contrast View Angle (H/V) Response Time (MS) Brand
32 698.4*392.8 1920*1080 500cd/m² 1800:01:00 178°/178° 6.5 LG/SAMSUNG
37 819.36*460.89 1920*1080 500cd/m² 5000:01:00 170°/160° 6.5 LG/SAMSUNG
42 930.24*523.26 1920*1080 400cd/m² 4000:01:00 170°/160° 6.5 LG/SAMSUNG
46 1018.3*573 1920*1080 450cd/m² 4000:01:00 170°/160° 6.5 LG/SAMSUNG
55 1209.6*680.4 1920*1080 500cd/m² 5000:01:00 170°/160° 6.5 LG/SAMSUNG



HARDWARE SPECIFICATION
Mainboard Mini-itx
CPU IntelD525/1.8GHZ/ Dual core
HDD SATAII 500GB/16MB/5400rpm
Memory DDR3-1333, 2GB
WIFI model Yes
Wired network built-in Realtek RTL8103EL
Optional Thermo Printer/IC card reader/Barcode scanner/Credit card reader/etc‘
Audio built-in HD audio 8(Realtek ALC888) audio system
TFT panel grade Grade A new panel
Printer Thermo printer / 58MM / 80MM (Optional)
Case Aluminiun edge+Cold rolled steel with powder coating + toughened glass surface
SOFTWARE DETAILS
OSD Language Chinese, English, Spanish, Russian, German, French, Arabic, etc‘
OS Compatible with Window7,Window8,XP, etc‘
WORKING ENVIRONMENT
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Humidity 20%-80% RH at 40°C
System Power Supply AC 110V~240V, 50/60HZ
